Product Parameter
Product Name
PE Diamond Grinding Wheel
Process
Hot press sintering
Aperture
22mm/50mm
Granularity
80#/140#/180#/240#

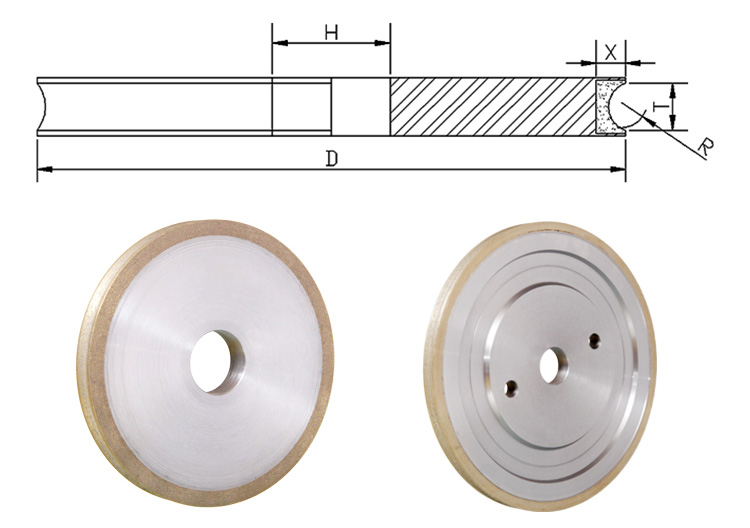

Diameter(D)
80mm/100mm/150mm/175mm/200mm
Thickness (T)
3mm/4mm/5mm/6mm/8mm/10mm/12mm /15mm/19mm
Specification
A variety of specifications can be customized
Configuration

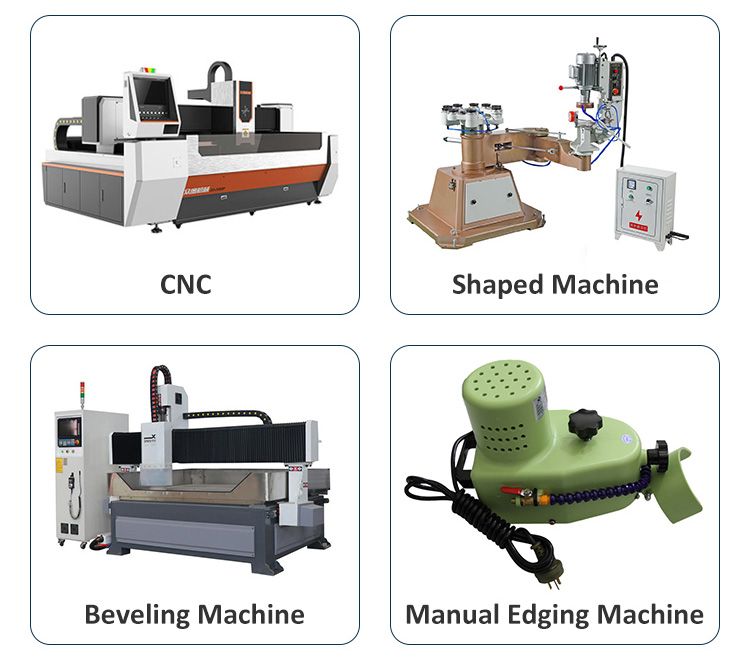

35mm-100mm, suitable for manual edging machine, used to process small glass. 100mm-150mm, suitable for special-shaped machines,
processing small and medium glass, such as doors and windows, tables, etc. CNC machines mostly use 100mm diameter grinding wheels and contain additional water holes. 175m and 200mm, used for processing automotive glass

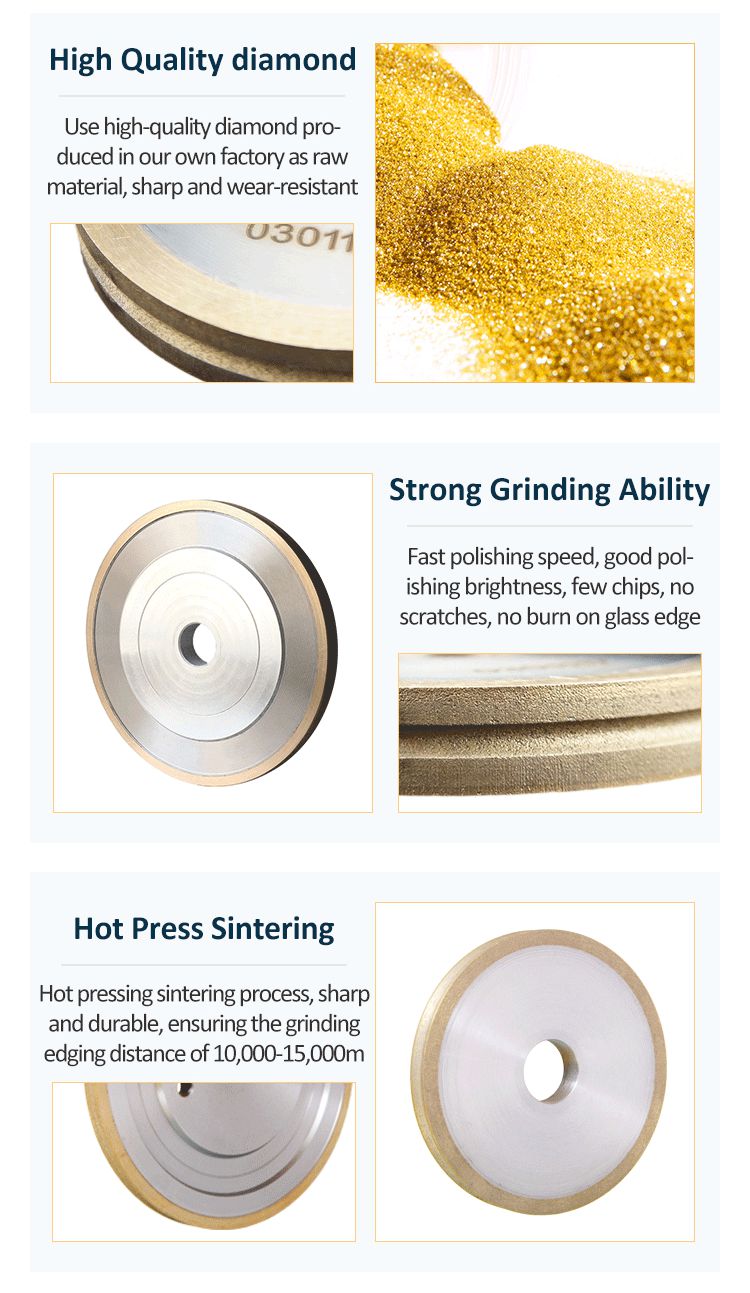

Product Advantages
Scope of Application
     Metal bond pencil edge diamond grinding wheel (PE diamond wheel) is mainly used for grinding safety glass, automotive glass, appliance glass, engineering glass, furniture glass, solar photovoltaic glass, optical lens,quartz crystal ceramics, ceramic, stone, marble table, etc.
Application

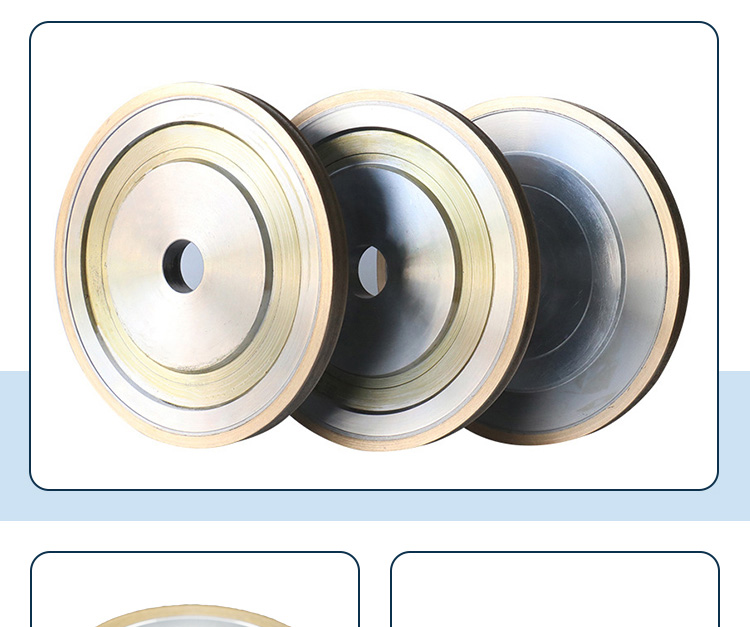

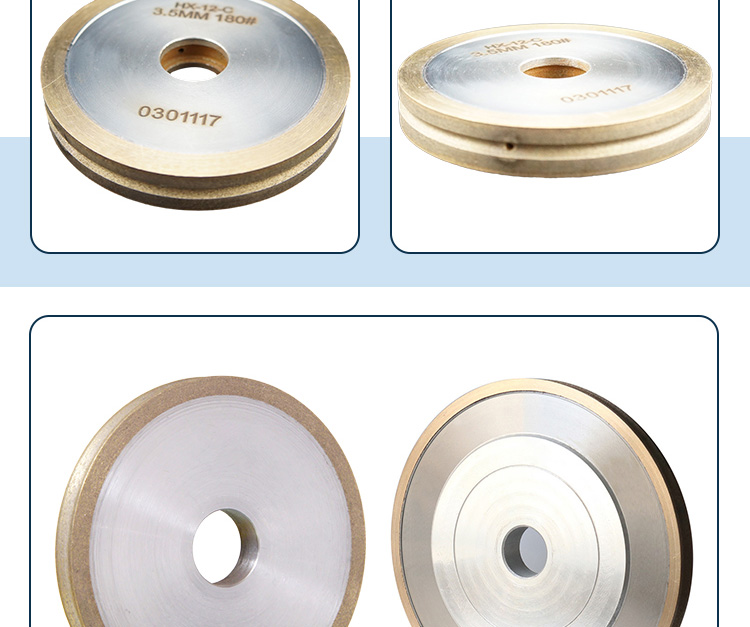

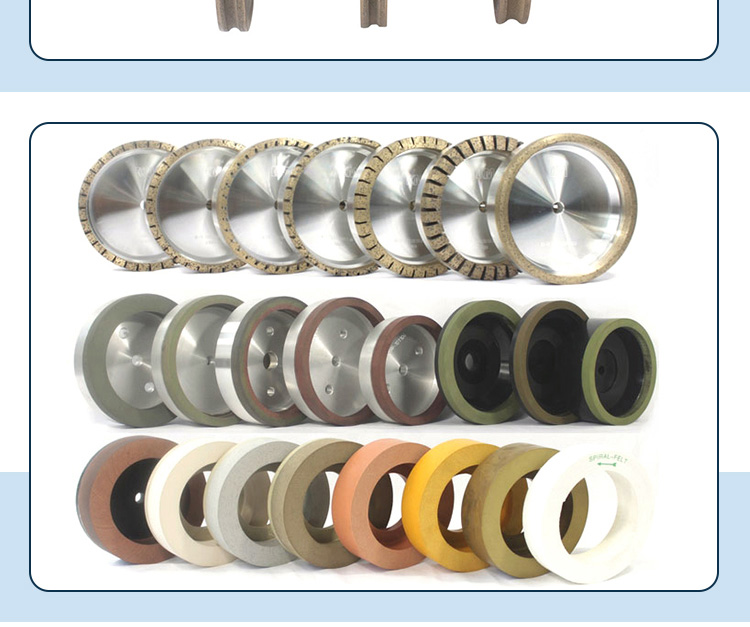

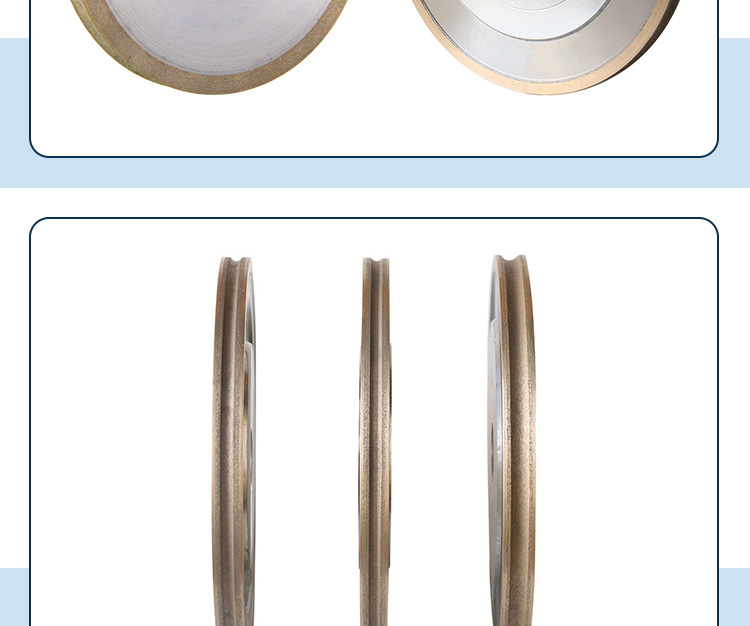

Products Show
